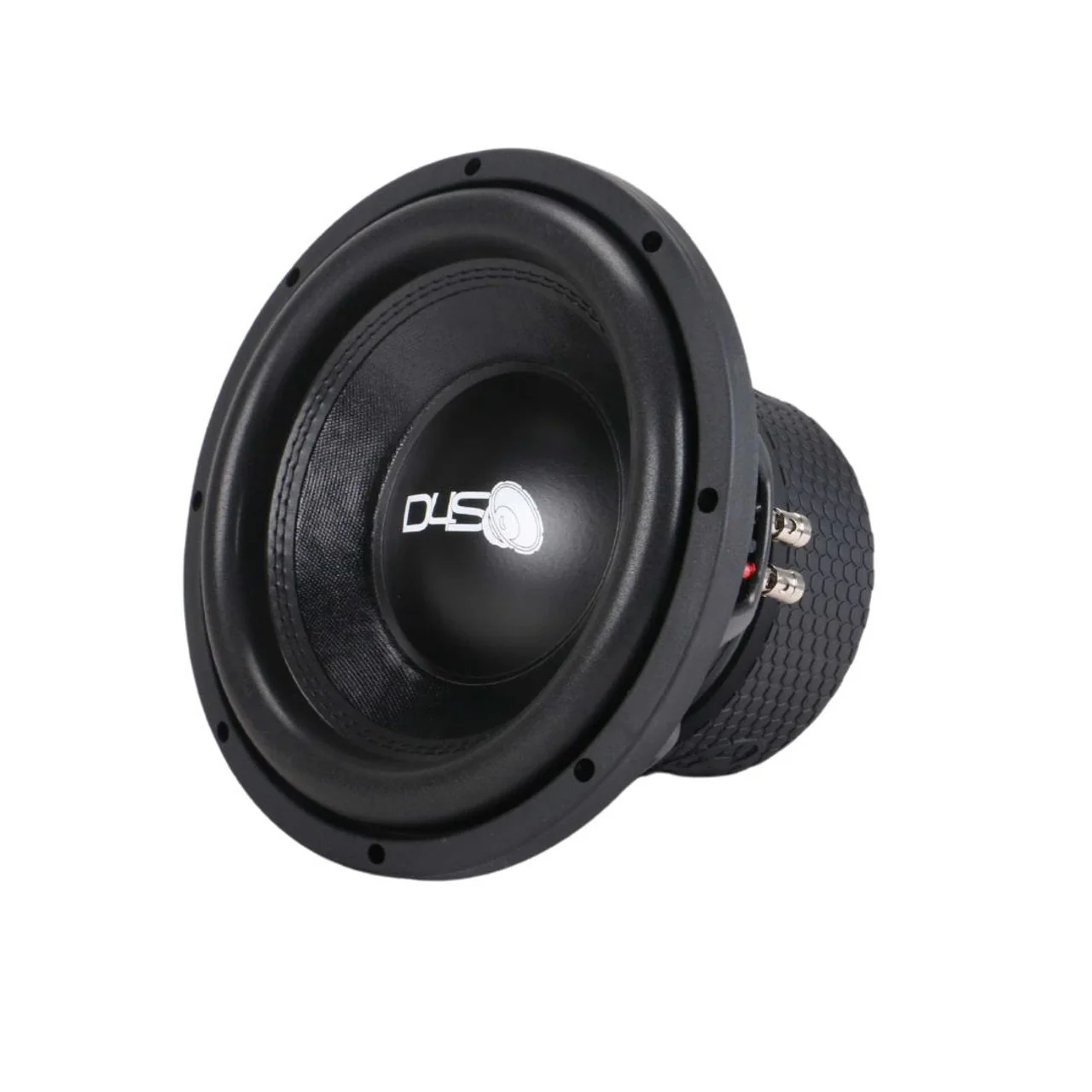

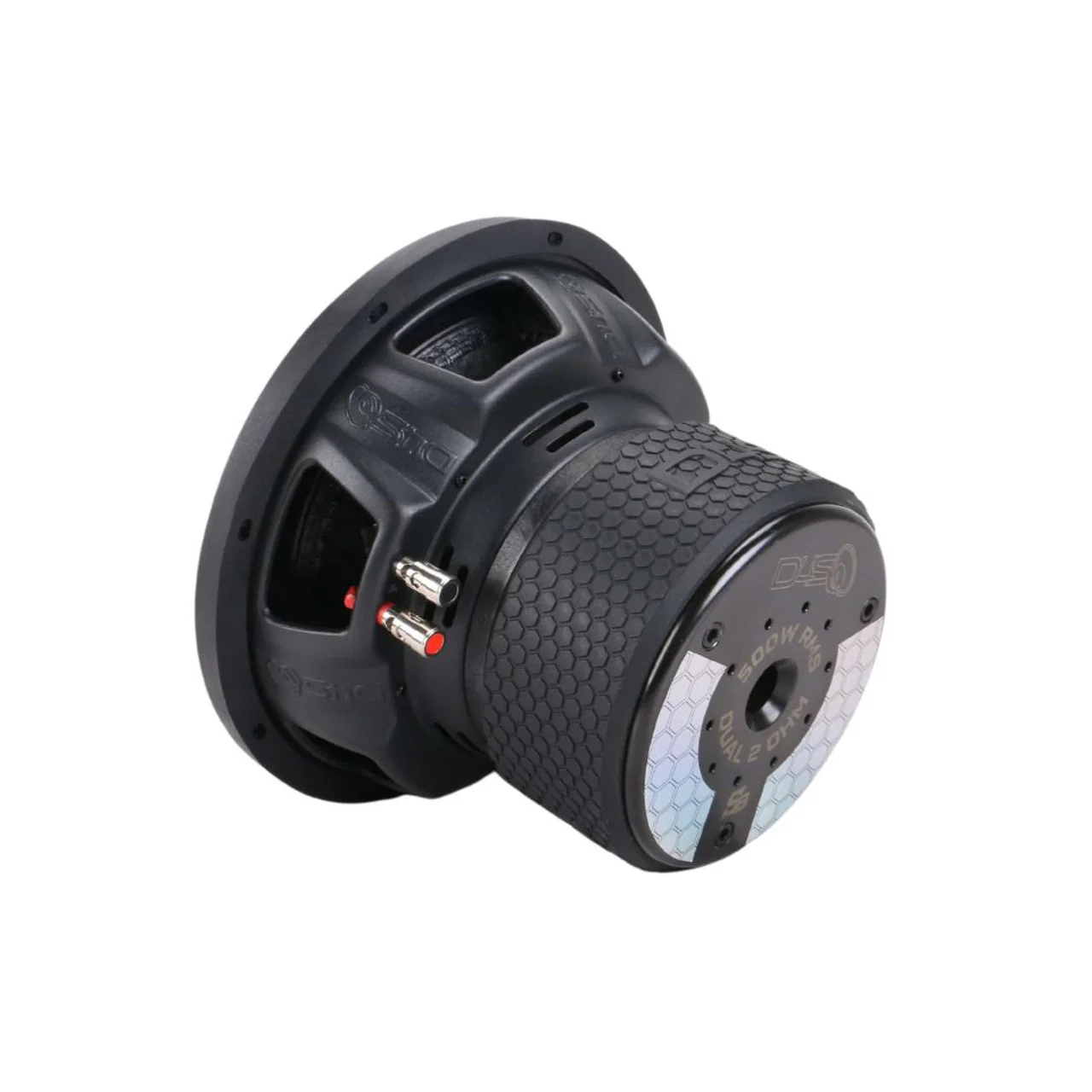

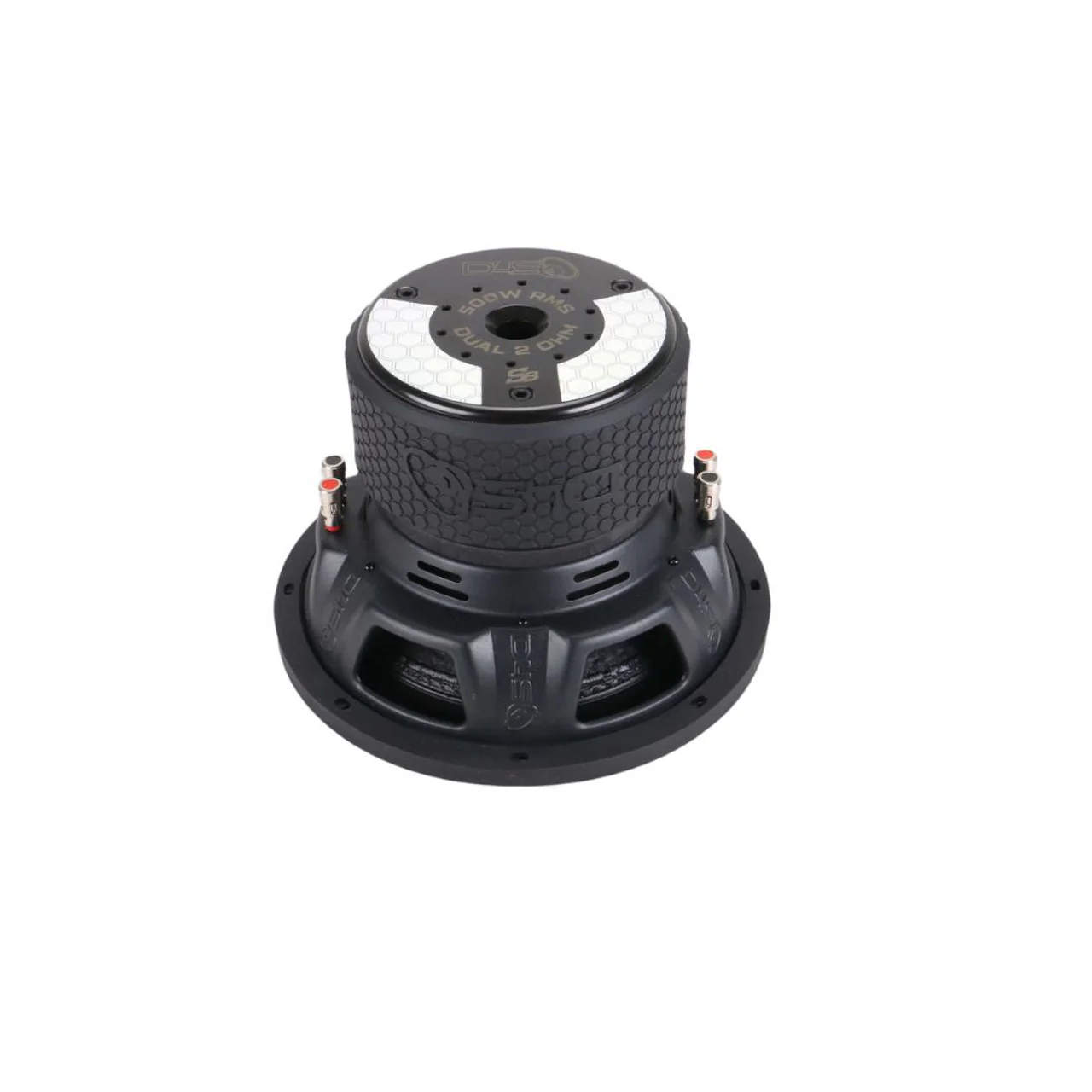

Down4Sound SB 10" 500W RMS Subwoofer DVC

Upgrade your car audio experience with the DOWN4SOUND SB 10” Subwoofer, built to deliver precise, deep bass and exceptional clarity. Featuring a dual 2-ohm/4-ohm voice coil configuration and 500W RMS power handling, this subwoofer offers a perfect balance of compact design, durability, and high-performance audio.

---

QUICK NOTES:

• RMS Handling: 500W RMS
• Coil Size: 2.5 Inch
• Cutout Diameter: 9.06 inches / 230 mm
• Outer Diameter: 10.28 inches / 261 mm
• Mounting Depth: 6.46 inches / 164 mm
• Motor Height: 3.54 inches / 90 mm
• Net Weight: 41.9 lbs / 19 kg
• Gross Weight: 45.2 lbs / 20.5 kg
• Highly optimized suspension for accurate sound reproduction
• Compact design for versatile installations

---

Technical Specifications:

• Revc (DC Resistance): 2.03 Ohm
• Resonance Frequency (Fs): 30.88 Hz
• BL Product: 19.38 T·m
• Total Moving Mass (Mms): 171.79 g
• Suspension Compliance (Cms): 151.45 μm/N
• Effective Piston Area (Sd): 506.71 cm²
• Equivalent Volume (Vas): 24.35 L
• Sensitivity (SPL): 83.0 dB
• Qms (Mechanical Q): 3.474
• Qes (Electrical Q): 0.555
• Qts (Total Q): 0.479
• Outside Diameter: 10.28 in (261 mm)
• Displacement: 0.09 cu ft

---

Recommended Enclosures:

• Ported Enclosure Size: 1.0 cu ft (net)
• Port Area: 15 sq in
• Port Tuning: 35 Hz
• Sealed Enclosure: Not Recommended

---

Why You Should Buy:

1. Powerful Performance in a Compact Design: Offers impressive bass response with a space-saving design.
2. Dual 2-Ohm/4-Ohm Flexibility: Supports versatile wiring configurations for seamless amplifier pairing.
3. Built for Longevity: Engineered with premium materials to handle intense use and provide long-lasting performance.
4. Superior Sound Quality: Optimized suspension delivers precise, clean low frequencies for any genre of music.
