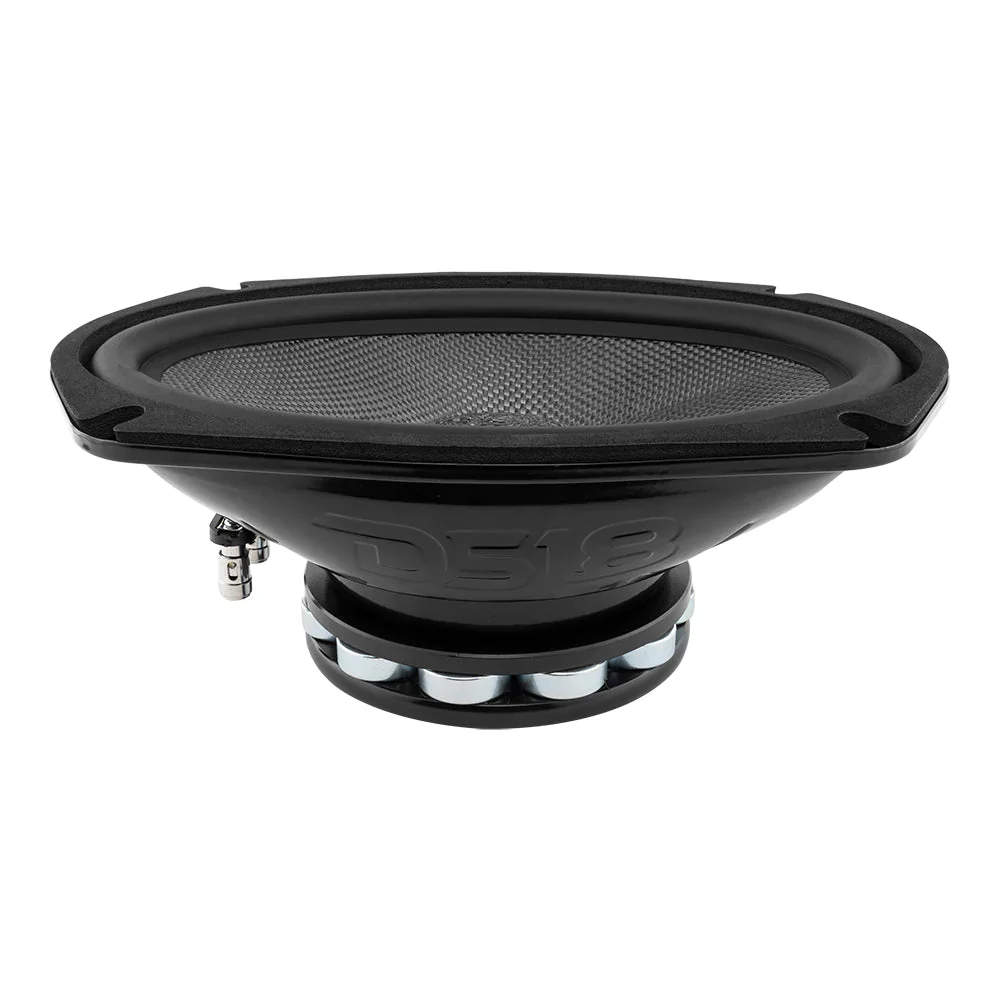

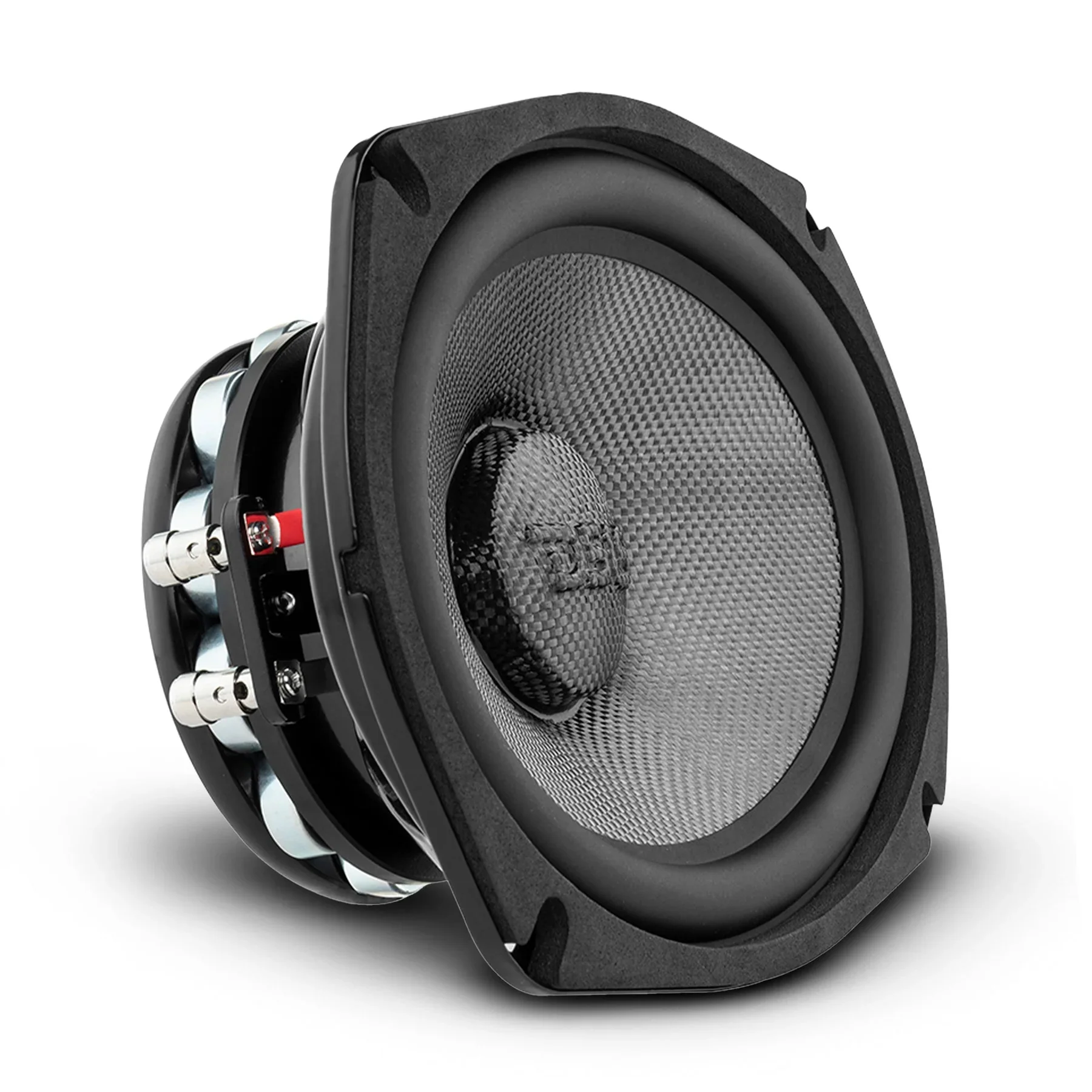

DS18 PRO-CF69.4NR

Key Features

• 6 x 9" Neodymium Water Resistant Loud Speaker
• Max Power Handling: 600 watts
• RMS Power Handling: 300 watts
• Frequency Response: 63Hz-12KHz
• Voice Coil Diameter: 2"
• Voice Coil Material: CCAW
• Impedance: 4-Ohms
• Sensitivity: (1W/1M) 95dB
• Magnet Weight: 0.3 Kg
• Magnet Material: Neodymium
• Mounting Depth: 3.25"

Great For:

• Marine Applications
• Off Road Applications
• Home Studios
• Bookshelf Speakers
• Satellite
• Surround Sound
• Hi-Fi Installation
• Car Audio
• DIY Projects

SPECIFICATIONS
Nominal Diameter	6x9" / 152x228mm
Nominal Impedance	4 ohms
RMS Power Handling	300W
MAX Power Handling	600W
Sensitivity (1w/1m)	95dB
Frequency Response	63Hz-12KHz
Recommended HI Pass Crossover	80Hz
Pair or Single	Single
Grill Included	No
MOTOR
Voice Coil Diameter	2" / 50mm
Voice Coil Former Material	Kapton
Winding Material	CCAW
Cone Material	WP Carbon Fiber
Dust Cap Material	WP Carbon Fiber
Surround Material	Rubber
Basket Material	Steel
Basket Color/Finish	Gloss Black
Magnet Material	Neodymium Rings
Magnet Weight	0.3Kg
MEASUREMENT
Overall Diameter	6.48x9.29" / 164.5x236mm
Overall Depth	3.44" / 87.5mm
Front Mount Baffle Cutout	5.94x8.58" / 151x218mm
Mounting Depth	3.25" / 82.5mm
Motor Diameter	4.45" / 113mm
