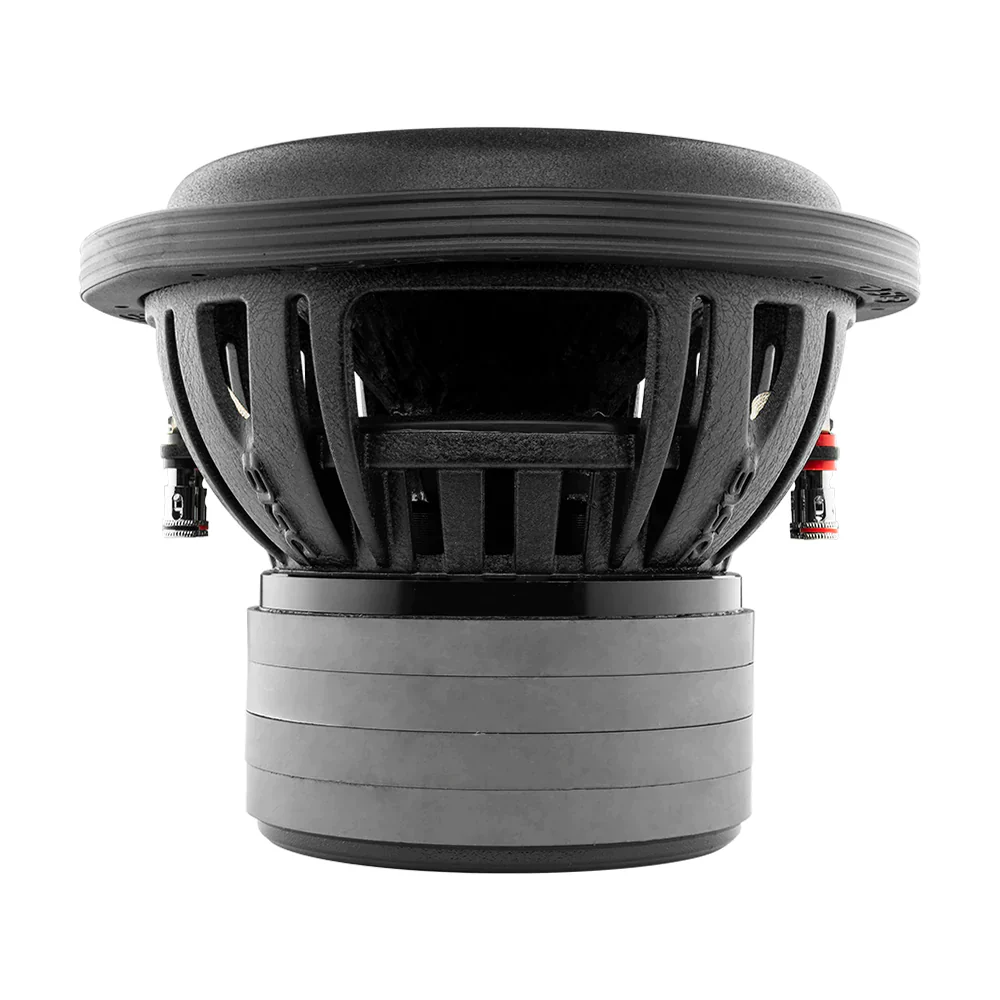

DS18 ZXI8.4D
| Nominal DiameterĀ | 8" / 203.2mm |
| Nominal ImpedanceĀ | 4 + 4 ohms |
| RMS Power HandlingĀ | 600w |
| MAX Power HandlingĀ | 1200w |
| Sensitivity (1w/1m)Ā | 86dB |
| Frequency Response | 25-880Hz |
| Recommended Lo Pass Crossover | 90Hz |
| MOTOR | Ā |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former MaterialĀ | Black Aluminum |
| Winding MaterialĀ | CCAW |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket MaterialĀ | Aluminum |
| Basket Color/Finish | Black Sandblasted |
| Magnet Material | Ferrite |
| Magnet Weight | 104 Oz (4 x 26 oz) |
| Displacement Volume | 1.02L / 0.036ft3 |
| MEASUREMENT | Ā |
| Overall Diameter | 8.58" / 218mm |
| Overall Depth | 6.83" / 173.5mm |
| Front Mount Baffle Cutout | 7.31" / 185.8mm |
| Mounting Depth | 5.51" / 140mm |
| Motor Diameter | 5.27" / 134mm |
Ā
Ā
$55.07
Original: $183.55
-70%DS18 ZXI8.4Dā
$183.55
$55.07Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Nominal DiameterĀ | 8" / 203.2mm |
| Nominal ImpedanceĀ | 4 + 4 ohms |
| RMS Power HandlingĀ | 600w |
| MAX Power HandlingĀ | 1200w |
| Sensitivity (1w/1m)Ā | 86dB |
| Frequency Response | 25-880Hz |
| Recommended Lo Pass Crossover | 90Hz |
| MOTOR | Ā |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former MaterialĀ | Black Aluminum |
| Winding MaterialĀ | CCAW |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket MaterialĀ | Aluminum |
| Basket Color/Finish | Black Sandblasted |
| Magnet Material | Ferrite |
| Magnet Weight | 104 Oz (4 x 26 oz) |
| Displacement Volume | 1.02L / 0.036ft3 |
| MEASUREMENT | Ā |
| Overall Diameter | 8.58" / 218mm |
| Overall Depth | 6.83" / 173.5mm |
| Front Mount Baffle Cutout | 7.31" / 185.8mm |
| Mounting Depth | 5.51" / 140mm |
| Motor Diameter | 5.27" / 134mm |
