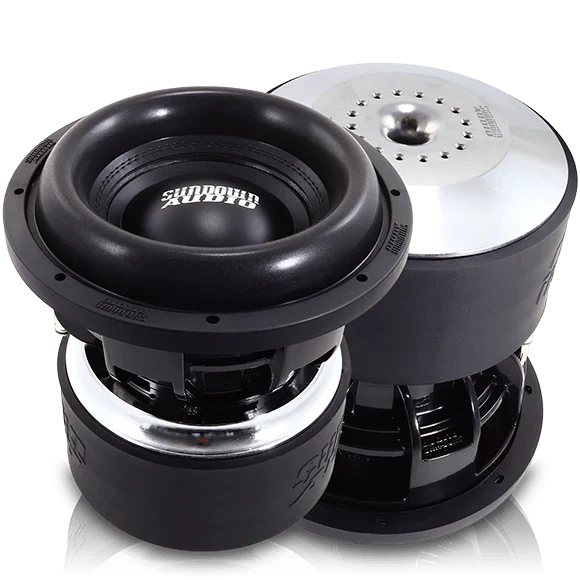

Sundown Audio ZV6 10" 3250W RMS Subwoofer DVC
- Power Handling: 3250 Watts RMS / 6500 Watts Peak
- Xmax = 35mm one-way by 70% BL
- Heavily vented magnetic gap
- Spring Loaded Terminals
- Optimized high-velocity pole vent
- Innovative high-velocity cast-aluminum vented frame spacer ring
- Black aluminum 3 inch 8-layer voice coil
- Mega-Roll v.2 surround
- Custom tooled basket
- Large aluminum Faraday (shorting) Ring
- Stitched-On XL Tinsel Leads to prevent fatigue and failure
- Custom-tooled ultra-linear spider packs
| T/S SPECS | Z V.6 10ā³D1 | Z V.6 10ā³ D2 |
|---|---|---|
| RE (Ohms) | 1.7 | 3.7 |
| FS (Hz) | 38.47 | 40.46 |
| VAS (L) | 8.1305 | 7.3693 |
| Qes | 0.4472 | 0.4523 |
| Qms | 5.7890 | 5.6379 |
| Qts | 0.4151 | 0.4187 |
| Le (mH) | 1.8883mH | 4.3059mH |
| BL (NA) | 19.1970 | 29.2091 |
| Mms (Grams) | 400.7235g | 399.6832g |
| Cms (uM/N) | 42.7032 uM/N | 38.7056 uM/N |
| Sens (dB @ 1w/1m) | 81.8985dB | 82.0801dB |
| Xmax | 35mm | 35mm |
Ā
| Sealed Enclosure | Not Recommended |
| Ported Enclosure | 1.5 cu.ft. net |
| Recommended Tuning | 32Hz |
| Recommended Port Area | 22 sq.in. |
| Displacement | .23 cu. ft. |
| Depth | 10.96" |
| Outside Diameter | 11.65" |
| Cut-Out | 10.01" |
| Physical Dimensions | Download |
